An industrial hydrocyclone system is an integrated solution centered around a Hydrocyclone, complemented by upstream and downstream equipment, control units, and auxiliary systems. It provides solutions for particle classification, solid-liquid separation, and concentration and dehydration in the industrial sector. Rather than a single device, it integrates equipment and process design to meet the needs of diverse industrial scenarios (such as mining, chemical industry, environmental protection, and power generation) to achieve a complete operational chain from raw material processing to separation/classification to product recovery/wastewater treatment. The configuration of an industrial Hydrocyclone System must be tailored to specific process objectives (such as classification, concentration, and dehydration). However, the core unit typically includes five modules: a core separation unit, a feed unit, a product transport unit, a control unit, and an auxiliary support unit.

　　Core Functions and Operating Logic of an Industrial Hydrocyclone System

　　The system's core function is determined by the centrifugal separation principle of the hydrocyclone. However, through the integration of upstream and downstream equipment, customized operations can be achieved to meet diverse industrial needs. Taking the most typical "classification + concentration" function as an example, the operating logic is as follows:

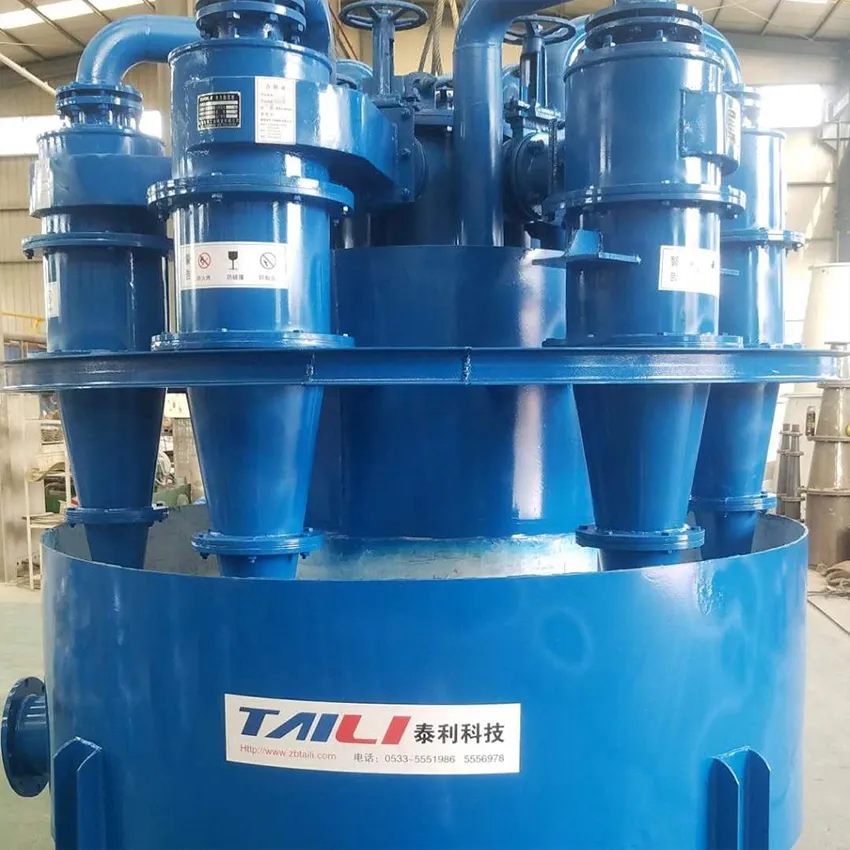

　　Raw Material Pretreatment: The slurry to be treated (such as ore slurry, desulfurized gypsum slurry, or chemical wastewater) first enters a buffer tank to smooth out feed flow fluctuations. If the slurry contains large impurities (such as ore fragments or fibers), it must first be filtered through a basket filter to prevent clogging of the cyclone feed. 2. Stable feed: A feed pump (such as a slurry pump) delivers the slurry to the cyclone manifold at a set pressure (usually 0.1-0.5 MPa, adjusted according to the cyclone diameter). The manifold evenly distributes the slurry to each cyclone (ensuring consistent flow when multiple cyclones are connected in parallel). The slurry then enters the cyclone through the tangential feed port. 3. Centrifugal Separation: The slurry forms a high-speed rotating flow within the cyclone (speeds can reach 1000-3000 r/min), generating centrifugal forces far exceeding gravity:

　　Underflow (coarse material/thick slurry): Large, high-density particles (such as coarse ore particles and gypsum crystals) are thrown toward the wall, spiraling downward along the conical wall and discharged from the grit nozzle into the underflow tank. They can then be transported to the grinding mill (for mineral processing and classification), a vacuum belt conveyor (for deep dewatering), or a finished product bin (such as concentrated slag).

　　Overflow (fine material/weak liquor): Small, low-density particles (such as fine ore slime and wastewater suspended solids) follow the internal vortex upward and are discharged from the overflow pipe into the overflow tank. They can then be returned to the upstream process (such as overflow feeding a flotation cell in mineral processing), enter a wastewater treatment system (such as chemical wastewater), or undergo further classification (using a cyclone in series for fine separation). 4. Dynamic Control: The control unit monitors the cyclone feed pressure via a pressure sensor and the underflow/overflow solids content via a concentration meter. If the underflow solids content is too low (e.g.,<40%), the="" plc="" automatically="" adjusts="" grit="" nozzle="" opening="" to="" a="" smaller="" size.="" if="" overflow="" solids="" content="" is="" too="" high="">8%), the feed pressure is increased or the overflow pipe is replaced with a smaller diameter to ensure stable separation.

　　Assisted Maintenance: After a certain period of system operation (e.g., 1-3 months), the cyclone interior is backflushed with high-pressure water from a cleaning device to remove any residual scale or blockage. Intelligent software also monitors the wear of the Cyclone lining (e.g., based on changes in the feed pressure differential) and promptly replaces severely worn liners (e.g., ceramic or polyurethane linings).
