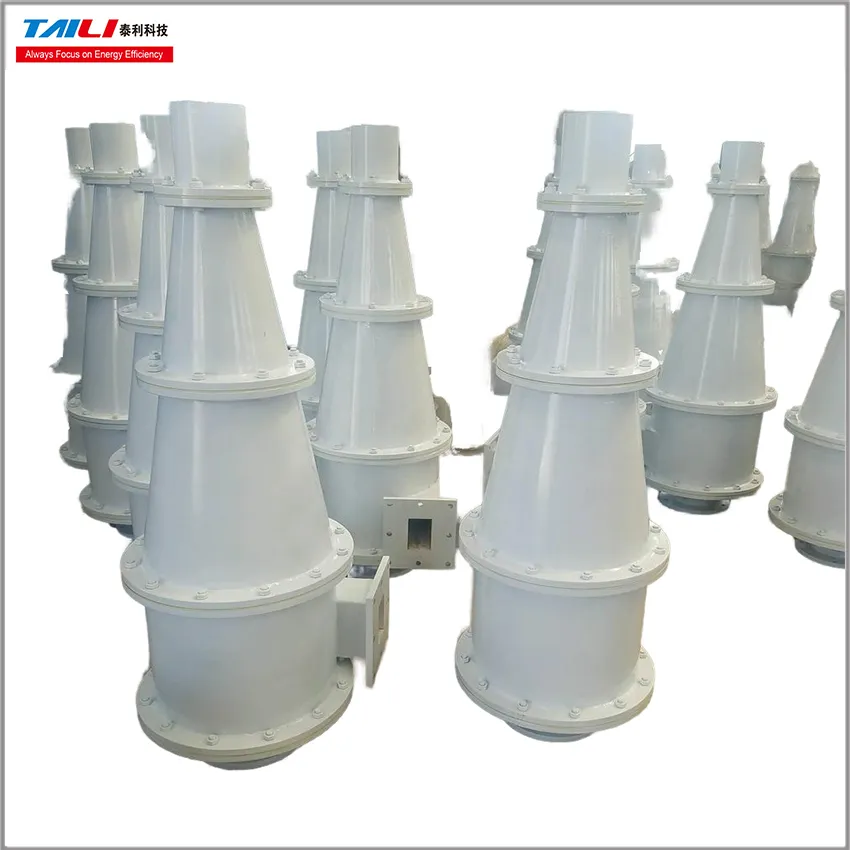

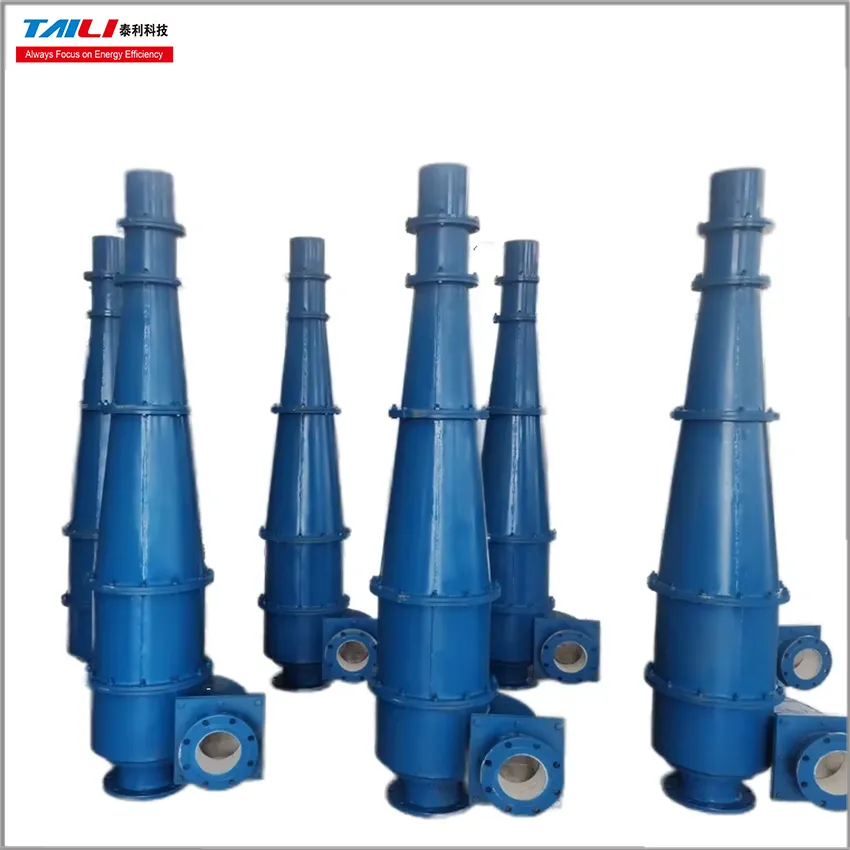

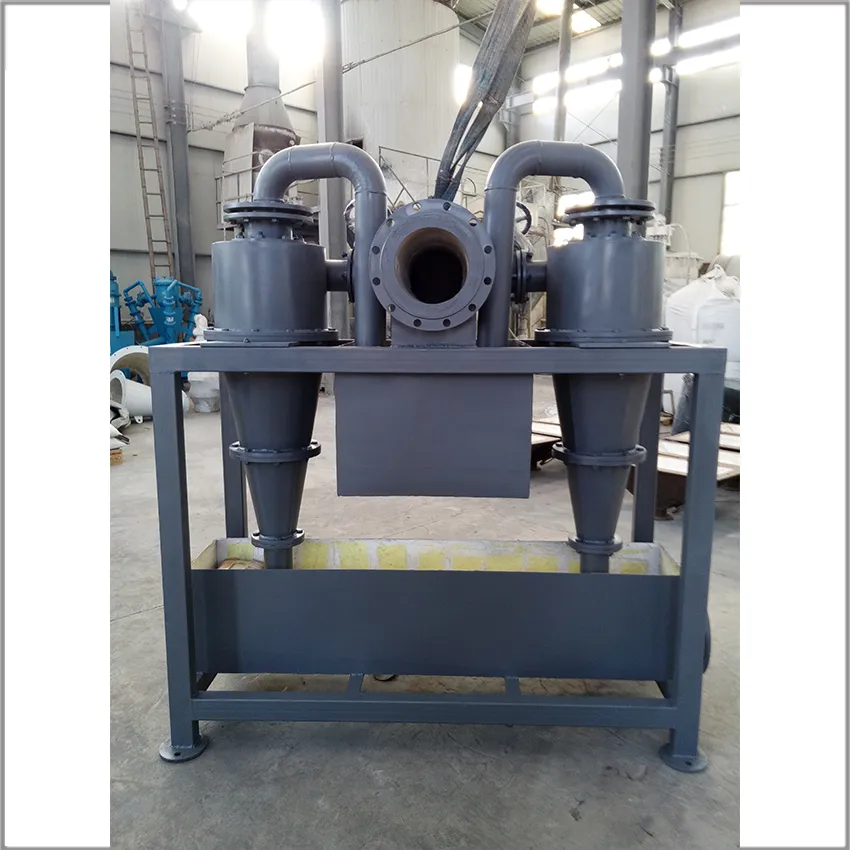

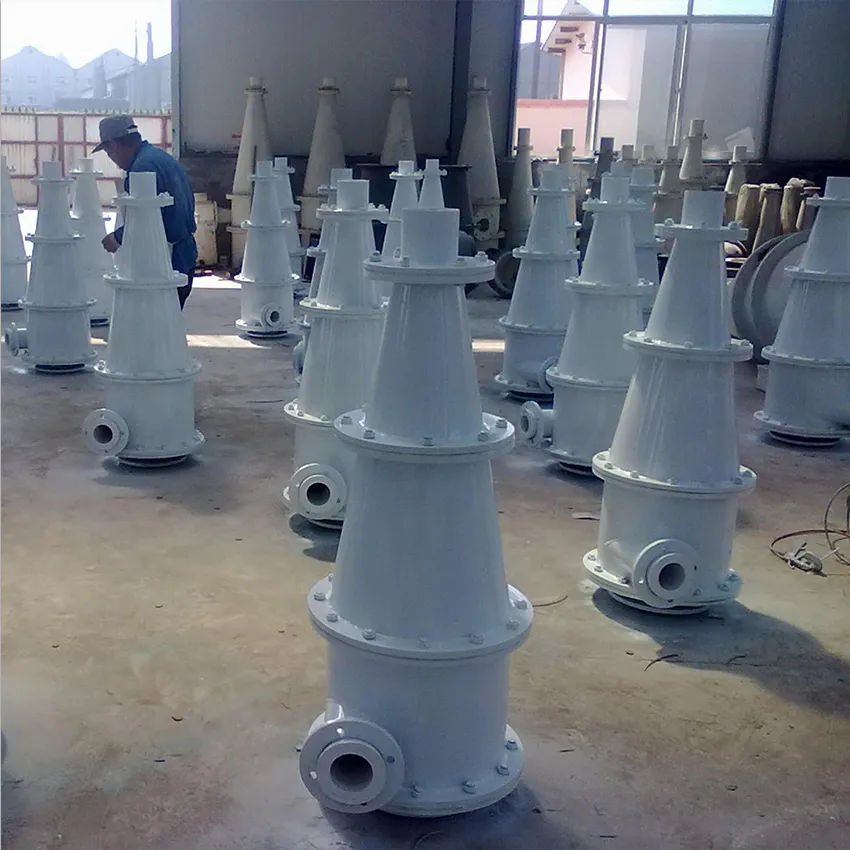

A high-efficiency mineral separator, a hydrocyclone, is a device based on centrifugal force, used to efficiently classify, separate, and concentrate mineral particles. It plays a vital role in mineral processing. The following is a detailed introduction:

Operating Principle: Under pressure, ore slurry enters the Hydrocyclone tangentially along the feed pipe at a constant speed, forcing it into a swirling motion. Coarse or dense particles experience a strong centrifugal force, moving toward the walls. Under their own gravity, they spiral downward along the walls, ultimately exiting the underflow outlet as sediment. Fine particles and most of the water, experiencing less centrifugal force, rotate with the slurry, forming an internal vortex in the inner layer, moving upward and exiting the overflow pipe as overflow, thereby separating mineral particles of varying sizes and densities.

Structural Features:

Feed Structure: The feed structure varies between hydrocyclone models. For example, Xinhai Mining's XC I model utilizes a three-dimensional volute feed structure, enabling both circumferential and axial feeding, eliminating turbulence near the overflow pipe. The XC II utilizes an involute feed method, reducing turbulence upon entry into the cyclone and ensuring smoother fluid flow.

Special Devices: Some cyclones are equipped with special devices to enhance performance. For example, the XC III model features a unique fishtail and siphon mechanism. The fishtail maintains a constant underflow concentration despite fluctuations in feed rate, concentration, and pressure, while the siphon mechanism can be adjusted to achieve a higher underflow concentration and a lower overflow concentration. The XC IV model features an adjustable compression sleeve at the grit nozzle, allowing for precise adjustment of the nozzle length, and thus the nozzle's resistance and classification performance.

Inner Lining Material: To enhance wear resistance and extend equipment life, cyclone fluid passages are typically constructed of wear-resistant materials. For example, all flow-through parts of the XC IV model are made of wear-resistant rubber, and the inner lining of the XC III model is also mostly made of wear-resistant rubber.

Performance Advantages:

High Classification Efficiency: Reaching 80%-90%, it produces a very fine overflow product, effectively improving mill utilization and significantly enhancing ore dressing efficiency during grinding and grading operations.

High Processing Capacity: High throughput per unit volume, compact footprint, meeting large-scale production needs and suitable for grading operations in medium- and large-scale mines.

Simple Structure: No moving parts, simple construction, low cost, minimal material consumption, and relatively low maintenance costs.

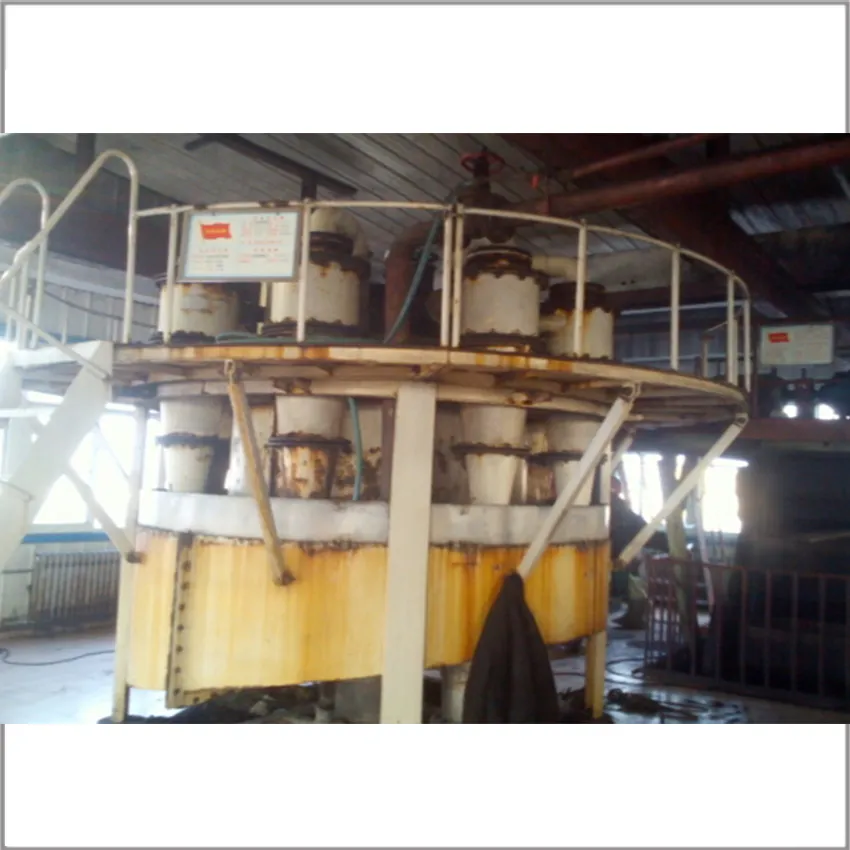

Applications: In the mineral processing industry, it is primarily used for grading, separation, thickening, and desludging. For example, it can be integrated with a mill into a grinding and grading system to improve grinding efficiency. It can also be used for desludging in gravity separation plants or for thickening beneficiation tailings before sending them to fill underground mining tunnels.
