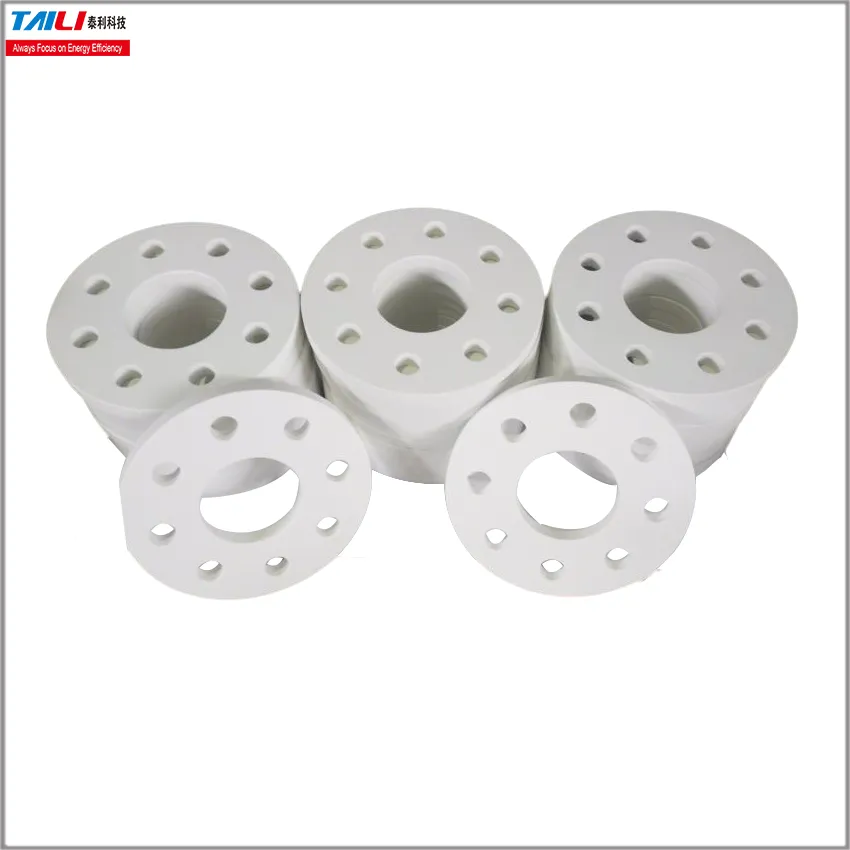

Alumina ceramic flanges are made primarily from high-purity alumina through precision molding, high-temperature sintering, and machining. They combine the excellent properties of alumina ceramic with the connection capabilities of flanges. They are widely used in specialized applications such as high-temperature, corrosion-resistant, wear-resistant, and high-insulation environments. The following is a detailed introduction:

Core Performance Features

The performance of alumina Ceramic flanges stems from the properties of their base material and the precision manufacturing process. Key advantages include:

Extreme Wear Resistance: With a Mohs hardness of up to 9 (second only to diamond) and a Vickers hardness of 12-18 GPa, abrasion resistance is 10-20 times that of metal flanges (such as stainless steel and cast iron). They can withstand the erosion and abrasion of particulate matter in fluids such as ore slurries, ash slag, and chemical slurries.

High-Temperature Stability: Long-term operating temperatures increase with increasing alumina purity. Products with 95% purity can operate stably below 1600°C and withstand short-term thermal shocks up to 1800°C. They remain resistant to deformation and oxidation when conveying high-temperature flue gases and molten media. Strong Corrosion Resistance: With the exception of hydrofluoric acid and strong bases, it exhibits excellent corrosion resistance to most acids (sulfuric acid, hydrochloric acid, nitric acid), bases, saline solutions, and organic solvents. Its chemical stability far surpasses that of metal flanges, making it suitable for use in highly corrosive environments.

Excellent Electrical Insulation: With a volume resistivity as high as 10⁴-10⁶Ω·cm, it provides effective insulation in high-voltage and high-frequency environments, preventing electrochemical corrosion and leakage risks. It is suitable for insulating connections in the electronics and power sectors.

Low Friction and Cleanliness: The precision-polished surface achieves a high finish (Ra ≤ 0.8μm) and a low coefficient of friction (0.1-0.2). It resists scaling and sticking, and the ceramic exhibits no precipitation and is non-toxic, meeting the requirements of cleanroom applications such as food and pharmaceuticals.

Structural Design and Customization Range

The structure of Alumina ceramic flanges must be customized based on the connection scenario, pressure rating, and equipment interface. Common types include:

Integral Flange: The flange plate and connecting pipe (or barrel) are integrally molded, offering high structural strength and suitable for medium- and low-pressure, small-size applications (such as laboratory piping and precision equipment interfaces).

Combined Flanges: Ceramic flanges are combined with Ceramic pipes/equipment using high-temperature adhesives or metal connectors. This facilitates the production and installation of large or special-shaped structures, reducing the overall molding difficulty.

Metal Composite Flanges: Metal flanges (such as stainless steel or carbon steel) are composited onto the outer layer of a ceramic flange and joined mechanically or brazed. This combines the corrosion resistance of ceramic with the sealing convenience of metal, making it suitable for high-pressure sealing applications.

Customizable Parameter Range:

Dimensions: Flange diameters can range from a few millimeters (for microelectronic devices) to several meters (for large industrial pipelines). Sealing surface configurations can be customized to include flat, raised, or tongue-and-groove surfaces, adapting to connection dimensions according to various standards such as ANSI, GB, and DIN.

Purity Selection: Alumina purity can be selected based on performance requirements, such as 90%, 95%, 99%, or 99.5%. High-purity products (above 99%) offer superior high-temperature resistance and insulation, making them suitable for high-end applications.

Precision Requirements: Precision machining can achieve dimensional tolerances of ≤±0.05mm and flatness of ≤0.02mm/m, ensuring a tight seal and minimizing leakage risks.

Key Production Process Points

The manufacturing of alumina ceramic flanges requires a balance between molding accuracy and performance stability. The core steps include:

Raw Material Preparation: High-purity alumina powder (≥90% purity) is selected, a small amount of sintering aids (such as SiO₂ and MgO) is added, and the powder is ball-milled to a particle size of ≤1μm to ensure uniformity and fluidity.

Molding Process: Small flanges are typically formed using dry pressing or isostatic pressing (uniform density and high density). Large flanges or complex structures are formed using slip casting, injection molding, or gel casting to ensure structural integrity, including the flange plate and bolt holes.

High-Temperature Sintering: Sintering is performed in an air or inert atmosphere furnace at 1600-1750°C (≥1650°C for 95% alumina). Controlling the heating rate and holding time promotes grain densification, forming a stable crystalline phase dominated by α-Al₂O₃.

Precision Machining: After sintering, diamond grinding wheels and grinding heads are used for cutting, grinding, and polishing. Key areas such as flange sealing surfaces and bolt holes are machined to ensure dimensional accuracy and surface finish. For threaded connections, high-precision threads can be achieved through electro-discharge machining (EDM).

Strengthening: Some products can be further enhanced with surface coatings (such as silicon nitride or zirconium oxide) to improve wear resistance or sealing, or metallization (evaporated metal coating) to enable welded connections to metal components. Application Areas

Due to their unique properties, alumina ceramic flanges are widely used in applications where traditional metal flanges struggle:

Chemical and Environmental Protection Industries: Used for connecting pipelines carrying corrosive media (such as acid and alkali solutions, and chlorine-containing gases), replacing stainless steel flanges to address corrosion and leakage issues. Examples include reactor feed ports and desulfurization tower flanges in chemical plants.

Metallurgy and Power Industries: Used as connectors in high-temperature flue gas and ash pipelines, they withstand temperatures exceeding 1000°C and particle erosion, such as in blast furnace gas pipelines and boiler slag discharge pipe flanges.

Electronics and New Energy Industries: Used as insulating flanges in vacuum equipment and semiconductor diffusion furnaces, they provide high insulation and a clean environment. Examples include pipe connections in 5G base station filters and photovoltaic silicon wafer melting furnaces.

Food and Pharmaceutical Industries: Used for connections in clean piping systems, ceramics are corrosion- and precipitation-free, complying with FDA and GMP standards and preventing material contamination. Examples include pharmaceutical water pipelines and food-grade slurry transfer flanges.

Mining and Building Materials Industries: Used for connecting wear-resistant pipelines such as slurry, cement clinker, and pulverized coal. They resist wear from high-concentration particulate materials and extend flange service life to 3-5 years (compared to 6-12 months for traditional metal flanges).

Installation and Maintenance Considerations

Sealing Design: Ceramic flanges have a smooth surface and require high-temperature, high-temperature, and corrosion-resistant sealing gaskets (such as polytetrafluoroethylene or metal bellows) to ensure a secure seal and prevent leakage.

Mechanical Fixing: Bolts should be tightened evenly during installation to avoid localized stress that could cause cracking in the ceramic. For metal composite flanges, regularly inspect the composite connection for looseness.

Maintenance: Regularly clean the flange surface of any deposits or material residue. Inspect the sealing surface for scratches or damage. Localized wear can be repaired through precision grinding. Severe damage requires prompt replacement.

Alumina ceramic flanges, by combining material properties with structural design, provide a reliable solution for connecting pipelines under extreme operating conditions, significantly reducing equipment maintenance costs and the risk of downtime.
