Alumina ceramic rollers are key components used to support and guide conveyor belts, combining a wear-resistant alumina ceramic layer with a metal or other substrate. Leveraging the superior properties of alumina ceramic, they excel in harsh operating conditions such as high wear, corrosion, and high temperatures. The following is a detailed introduction:

Core Performance Features

The performance advantages of alumina Ceramic rollers stem from the combination of alumina ceramic's properties and structural design, primarily including:

· Superior Wear Resistance: The surface ceramic layer boasts a Mohs hardness of 9 and a Vickers hardness of 12-18 GPa, resulting in wear resistance 5-10 times that of traditional steel rollers and 3-5 times that of rubber rollers. This provides long-term resistance to friction and particle erosion between the conveyor belt and materials (such as ore, coal, and sand and gravel), significantly extending its service life.

· Excellent Corrosion Resistance: Alumina ceramic exhibits strong chemical stability and is resistant to corrosive environments, including acid, alkali, salt spray, and humidity, with the exception of hydrofluoric acid and strong alkali. This addresses the rusting and aging corrosion issues of traditional metal rollers and rubber rollers, making it suitable for applications such as coastal areas, chemical industries, and hydrometallurgy.

 · High-temperature and oxidation resistance: Alumina ceramics can operate for extended periods below 1200°C without oxidation or deformation, making them suitable for high-temperature applications such as metallurgical sinter ore conveying and high-temperature material transfer, where metal rollers are susceptible to oxidation and failure.

· Low friction and energy efficiency: The ceramic surface is precision-machined to a high finish (Ra ≤ 0.8μm) and a low coefficient of friction (0.1-0.2). This reduces frictional resistance against the conveyor belt, reducing drive motor energy consumption and conveyor belt wear.

· Lightweight and stable: Alumina ceramics have a density of approximately 3.6-3.9g/cm³, about half that of steel. They are 10%-30% lighter than steel rollers, reducing conveyor belt loads. Furthermore, the ceramic layer firmly bonds to the base material, resulting in low vibration and noise (≤ 65dB) during operation.

Structural Design and Types

The structure of Alumina ceramic rollers must balance wear resistance, support strength, and ease of installation. Common types include:

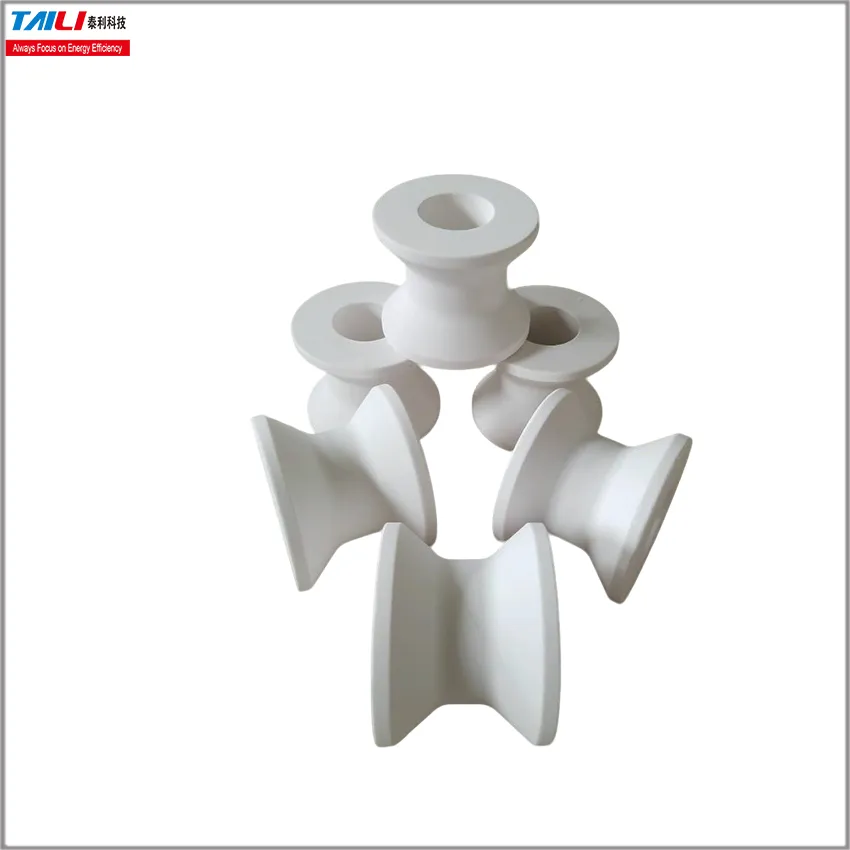

· Integral ceramic rollers: The roller body is made entirely of high-purity alumina ceramic, with metal bearing seats at both ends. Suitable for small-diameter, light-load precision conveying applications (such as conveying electronic components and food-grade materials).

· Ceramic composite rollers: The roller body is constructed from a steel tube or composite material. Alumina ceramic tiles (such as hexagonal or fan-shaped tiles) are laminated to the surface through high-temperature sintering, gluing, or inlaying. The tiles are secured with mortise and tenon joints or welding. Suitable for large-diameter, high-load industrial conveying (such as mining belt conveyors and power plant coal conveying systems).

· Sealed ceramic rollers: Ceramic or metal seals are used at both ends of the roller, along with high-temperature and corrosion-resistant bearings to prevent dust and moisture from entering the roller body, improving reliability in dusty and humid environments.

 Key Production Process Points

The manufacturing of alumina ceramic rollers requires balanced bonding between the ceramic and the substrate. The core steps include:

1. Ceramic Layer Preparation: Alumina powder is mixed with additives and formed into ceramic sheets/cylinders through dry pressing, isostatic pressing, or slip casting. This is then densified by sintering at 1600-1750°C to ensure the ceramic's hardness and density.

2. Substrate Treatment: The metal substrate (such as seamless steel pipe) is rust-removed and sandblasted to enhance bonding with the ceramic layer. If gluing is required, a special high-temperature-resistant ceramic adhesive is applied to the surface.

3. Composite Forming: The ceramic sheet is fixed to the metal cylinder surface using a mosaic method, or mechanical bonding is achieved through shrink fitting, welding, or other methods. Some products utilize a self-propagating high-temperature synthesis process to achieve a metallurgical bond between the ceramic and metal, enhancing impact resistance.

4. Precision Machining and Assembly: The composite roller body is ground to ensure external cylindrical accuracy (tolerance ≤ ±0.1mm) and surface finish. Bearings and seals are then assembled and dynamically balanced (balance accuracy ≤ G6.3) to ensure operational stability.

Applications

Alumina ceramic rollers are primarily used in applications where traditional rollers are susceptible to wear, corrosion, or failure. Typical applications include:

· Mining and Building Materials Industry: In mining belt conveyors and sand and gravel production lines, they replace steel rollers to address erosion and wear caused by ore particles, extending service life to 3-5 years (compared to 6-12 months for traditional steel rollers).

· Power and Metallurgy Industry: In coal conveying systems in thermal power plants and slag conveyor belts in metallurgical blast furnaces, they withstand high-temperature erosion and corrosion from fly ash and slag, reducing downtime and replacement frequency.

· Chemical and Salt Industry: In chemical raw material conveyor belts and salt conveying equipment, they resist acid and alkali corrosion and salt spray erosion, preventing conveying failures caused by rust on metal rollers.

· Food and Pharmaceutical Industry: Rollers used for conveying food-grade powders and tablets. The ceramic is non-toxic, non-leaching, and has a smooth, easy-to-clean surface that meets hygiene standards (such as FDA and GMP certification).

Installation and Maintenance Recommendations

· Installation Precautions: During installation, ensure the roller axis is perpendicular to the conveyor belt to avoid uneven loading that could cause localized wear of the ceramic layer. For heavy loads, increase the spacing between the rollers or use a thicker ceramic layer.

· Daily Maintenance: Regularly clean any material adhering to the roller surface, inspect the ceramic layer for cracks or detachment, and check for unusual bearing noise. If severe localized wear is detected, replace the roller promptly to avoid damaging the conveyor belt.

· Selection Criteria: Select the appropriate structure and ceramic purity based on the material hardness (e.g., quartz sand requires high-purity ceramic), conveying speed (high-speed applications require a low friction coefficient), ambient temperature, and corrosiveness.
