Products

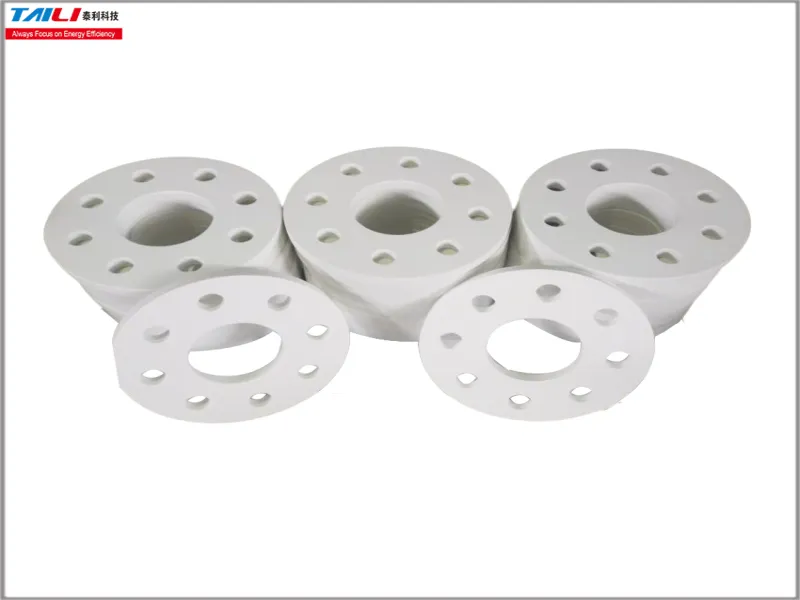

Alumina Ceramic Flange

Alumina ceramic flange is a ceramic flange component made of high-purity alumina as the main raw material through precision molding, high-temperature sintering and precision machining. It combines the excellent performance of alumina ceramics with the connection function of flanges and is widely used in special working conditions such as high temperature, corrosion, wear resistance and high insulation.
Send Inquiry

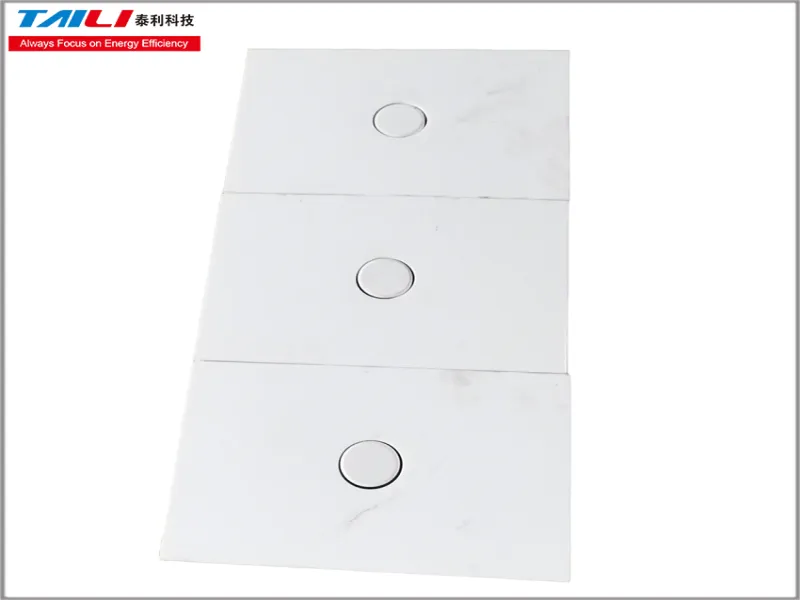

Alumina Ceramic Custom Parts

Custom alumina ceramic parts are custom-designed and manufactured to meet specific application requirements, with customized shapes, sizes, and properties. Performance High Hardness and Wear Resistance: Alumina ceramic has a Mohs hardness of 9, second only to diamond, and its wear resistance is approximately 20 times that of stainless steel, enabling long-term use in high-wear environments. High-Temperature Resistance: Alumina ceramic can operate in atmospheric environments up to 1750°C and...
Send Inquiry
Alumina Ceramic Lined Pipe

Unique raw material formula, alumina purity exceeds 95%, is sintered at high temperature using isostatic pressing process, hardness exceeds HRA90, and wear resistance is excellent; the inner wall of the ceramic tube is smooth without steps, non-sticky and non-hanging, smooth airflow, easy to clean; good high temperature resistance, can operate at 750℃ for a long time; anti-scouring, can resist scouring of larger particles without breaking.
Send Inquiry

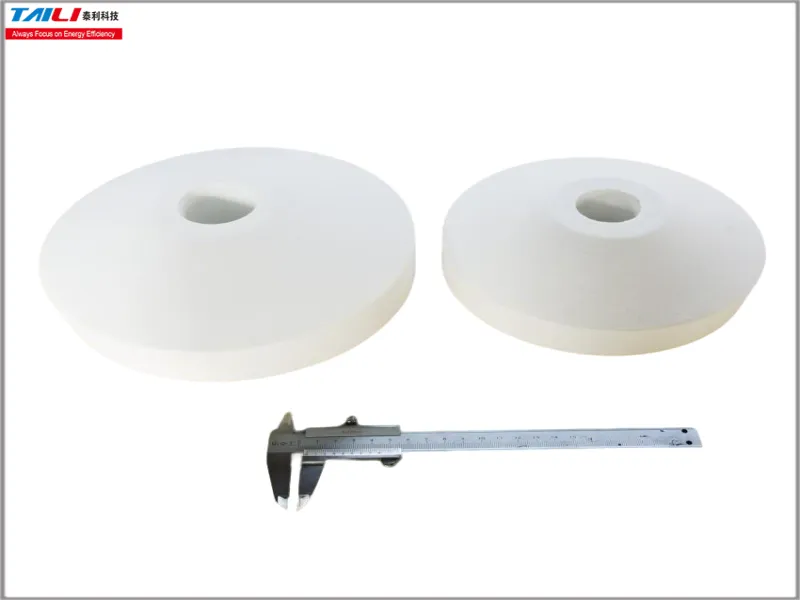

Wear-Resistant Ceramic Powder Cone

Wear-resistant ceramic powder cone is a conical wear-resistant component made of high-purity alumina ceramic as the core material. It is mainly used in industrial equipment such as material conveying, screening, and mixing. It plays a key role in guiding, buffering and preventing wear of powder, granular materials and other materials.
Send Inquiry
High Temperature Alumina Ceramic Bushing

High temperature alumina ceramic bushing has a unique raw material formula, with an alumina purity of more than 95%, and is sintered at high temperature using an isostatic pressing process; the product has a refractoriness of 1790°C and a maximum operating temperature of ≥1750°C; the volume density is 3.8KG/m³; the porosity is ≤0.1%; the compressive strength is ≥90MPa; and the flexural strength is ≥ 35MPa.
Send Inquiry

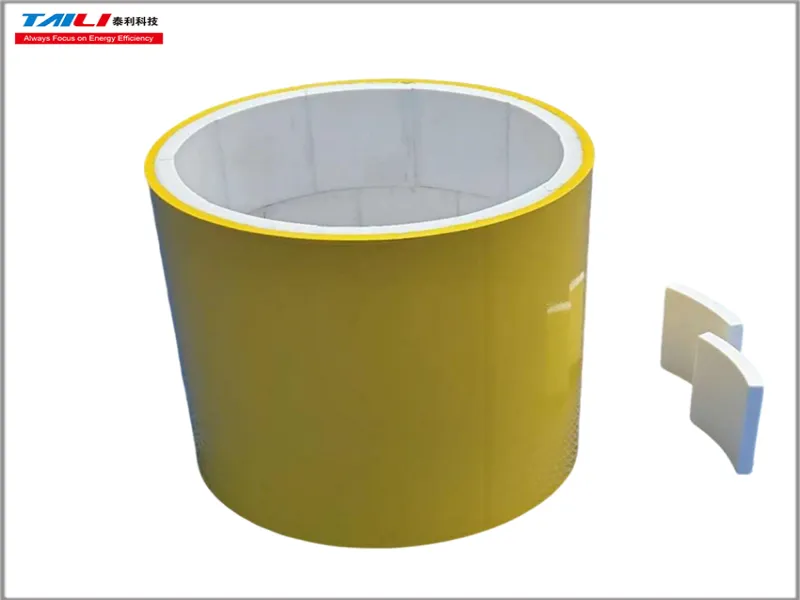

Steel Lined Alumina Ceramic Lining

Steel-lined alumina ceramic lining is a composite material widely used in the field of industrial wear protection. It is formed by inlaying or bonding high-purity alumina ceramics (Al₂O₃) on a metal substrate (such as steel plate) to form a protective structure with both metal toughness and ceramic wear resistance.
Send Inquiry

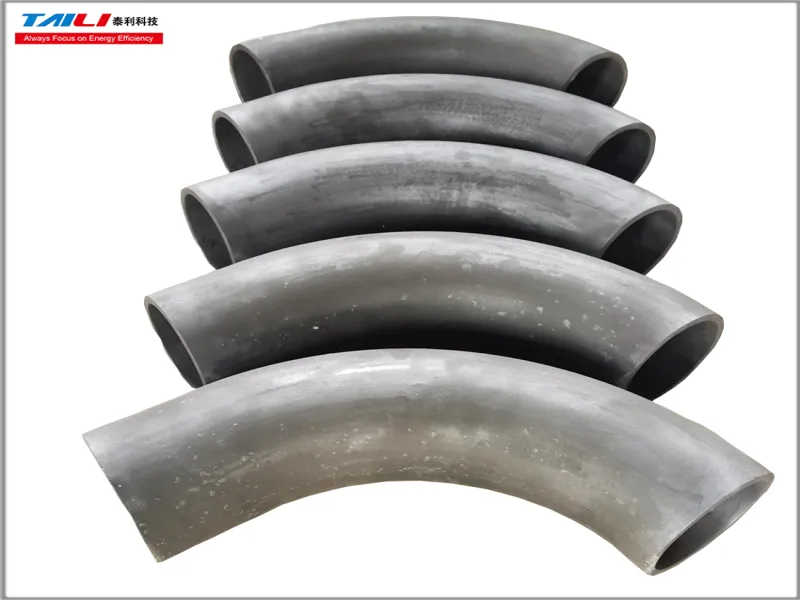

Steel Lined Silicon Carbide Wear-resistant Ceramic Pipe

Steel-lined silicon carbide wear-resistant ceramic pipe is a high-performance composite pipe that combines the strength of metal materials and the wear resistance of non-metallic materials. It is widely used in severe wear conditions in the power, metallurgy, mining, chemical and other industries. Layer steel pipe: Provides mechanical strength and impact resistance to support the inner lining ceramic. Lined silicon carbide ceramic: Fixed to the inner wall of the steel pipe by bonding, sinterin...
Send Inquiry
Armored Wear-resistant Ceramic Ring Composite Pipe

Armored wear-resistant ceramic ring composite pipe, also known as one-piece ceramic pipe, is made by firing the wear-resistant ceramic pipe as a whole and pouring it inside the steel pipe with special filling material. The inner wall of the pipe is smooth, the sealing performance is good, and it has good wear resistance and corrosion resistance.
Send Inquiry
Lithium Battery Positive And Negative Electrode Material Production Powder Conveying Pipeline

The powder conveying pipeline for the production of positive and negative electrode materials for lithium batteries consists of three layers: 304 stainless steel pipe, viscose and wear-resistant ceramics, and uses an integral wear-resistant ceramic ring as the inner lining anti-wear layer.
Send Inquiry
Wear-resistant Ceramic Ash And Coal Powder Conveying Pipeline

Wear-resistant ceramic ash slag coal powder conveying pipeline is mainly used to resist the damage of mixed airflow to the pipeline, prevent the mixed airflow from leaking and polluting the environment due to wear, and greatly extend the service life of the pipeline. Its outer shell is steel, and the inner lining is alumina ceramic with excellent wear resistance. It not only exerts the high temperature wear resistance and corrosion resistance of alumina ceramic, but also reflects the high streng...
Send Inquiry
Wear-resistant Ceramic Patch Pipe

Ceramic patch wear-resistant pipes use special ceramic glue to stick the alumina arc lining plate to the inner wall of the pipe, and then form a firm anti-wear layer after heating and curing. The product has excellent wear resistance, corrosion resistance, heat resistance and other properties. The product is suitable for coal washing, tailings transportation, limestone transportation, coal powder transportation, mineral powder transportation, dust removal system, ash removal system, slag transpo...
Send Inquiry
Pneumatic Conveying Wear-resistant Ceramic Pipe

Pneumatic conveying wear-resistant ceramic pipes are designed for high wear and corrosion conditions. They are widely used in power, metallurgy, mining, chemical and other industries to transport fly ash, mineral powder, cement, sand and gravel and other abrasive materials. Its core advantage is that the high hardness of ceramic materials (Mohs hardness ≥ 9) significantly improves the wear resistance of the pipe, prolongs its service life and reduces maintenance costs.
Send Inquiry
Small Diameter Hydrocyclone For Non-metallic Mines

The novel structure, small diameter and small cone angle are conducive to improving the classification efficiency and classification accuracy. Reasonable flow channel design and reasonable material combination selection are resistant to high pressure and wear, and have no pollution to the processed materials. According to the changes in separation particle size and processing capacity, the feed distributor and its pipeline are reasonably designed, which is conducive to the consistent working s...
Send Inquiry
Two-product Heavy Medium Hydrocyclone

Working principle: The coal and gangue in the heavy medium hydrocyclone are acted upon by gravity and centrifugal force. When the particle density is greater than the suspension density, the direction of the force is the same as the direction of centrifugal acceleration. The particles move centrifugally in the hydrocyclone medium and concentrate in the outer layer.
Send Inquiry
Flat Bottom Hydrocyclone

Flat bottom hydrocyclone is suitable for working occasions with high concentration, large specific gravity of solid particles and coarse cutting particle size. The overflow fineness requirement is -200 mesh 60% or less process requirement. The overflow fineness is uniform and the bottom flow yield is easy to adjust, which can increase the grinding capacity by 10~20%.
Send Inquiry
Three-product Heavy Medium Hydrocyclone

Equipment Description: The heavy medium suspension and minerals are subjected to centrifugal force in the hydrocyclone, so that the suspension is layered according to density, and the minerals in the suspension are separated according to different densities.
Send Inquiry
Hydrocyclone

The operating principle of a hydrocyclone is based on centrifugal sedimentation, primarily utilizing centrifugal force to separate particles or liquids of varying densities from a mixed fluid. Specifically, when a pressurized mixed liquid enters the hydrocyclone's tangential inlet at a constant velocity, a high-speed rotating flow field is generated within the cylindrical chamber, forming an external vortex. Denser components in the mixture are subjected to a greater centrifugal force, moving do...
Send Inquiry
Hydrocyclone Lining

Installation Methods: Adhesive Method: The ceramic liner can be installed under normal temperature conditions by adhesively bonding it to the inner wall of the hydrocyclone using a special adhesive. This method is simple to use and low-cost. Stud Welding Method: For higher temperature conditions, stud welding can be used. First, studs are welded to the inner wall of the hydrocyclone, and then the ceramic liner is secured to the studs.
Send Inquiry
